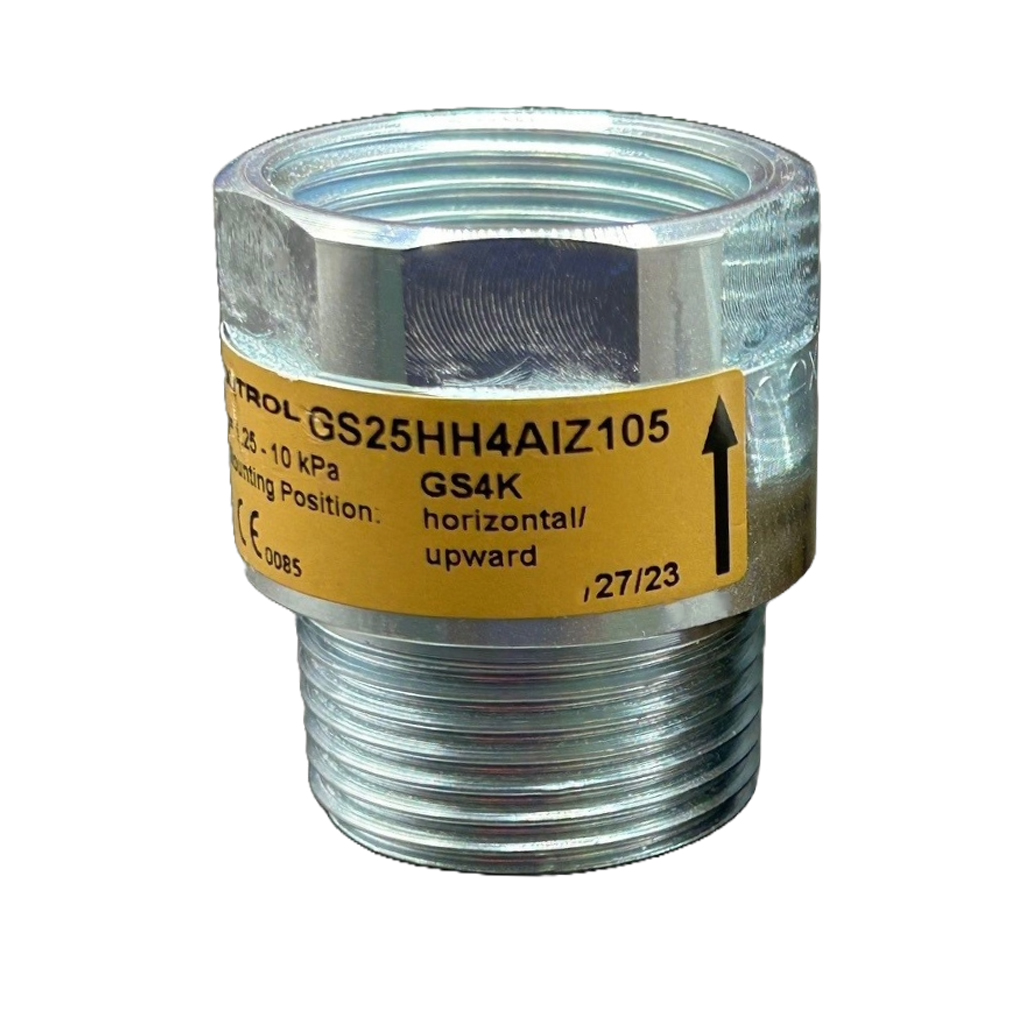

Model Series: KBGS25HH4AIZ105 / (DN25) / (1″)

SENTRY GS Excess Flow Valves (EFV) Residential Installation (Australia/New Zealand)

SENTRY GS excess flow valves (EFV) for residential installation shut off the gas flow when a predefined closing flow rate is reached.

Part Number: KBGS25HH 4AIZ1

Model Series: GS25-4Z Sentry EFV

Working Pressure: 1.25kPa – 10kPa

Nominal flow: 4.0 m³/h = 155Mj/hr

EFV Shut-off: 5.8 m³/h = 225Mj/hr

Orientation: Fem Inlet X Male Outlet

Flow Direction: Vertical-up / Horizontal
Thread Standard: DN25 ISO 7(Rp.)
