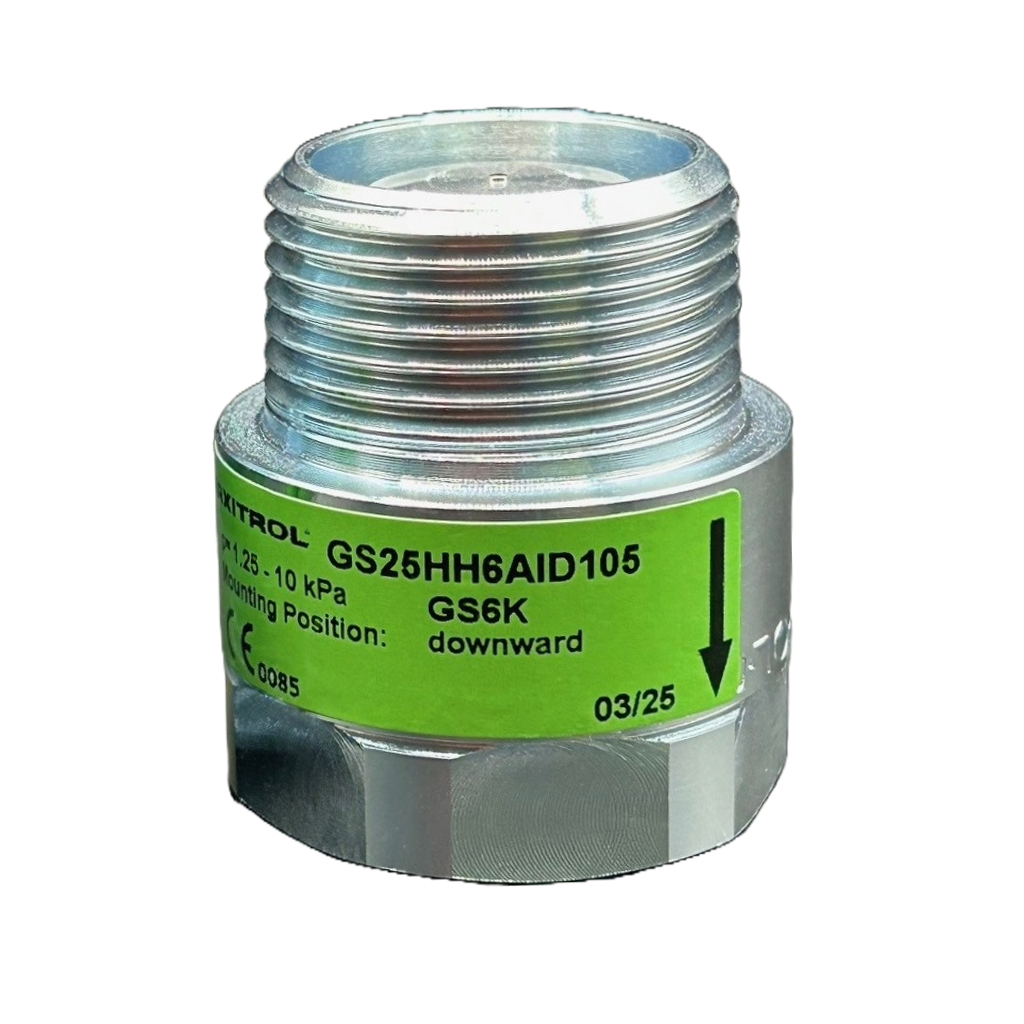

Model Series: KBGS25HH6AID105 / (DN25) / (1″)

SENTRY GS Excess Flow Valves (EFV) Residential Installation (Australia/New Zealand)

SENTRY GS excess flow valves (EFV) for residential installation shut off the gas flow when a predefined closing flow rate is reached.

Product Code: KBGS25HH 6AID1

Model Series: GS25-6D Sentry EFV

Working Pressure: 15mbar -100mbar

Nominal flow: 6.0 m³/h = 230Mj/hr

Shut-off: 8.7 m³/h = 330Mj/hr

Orientation: Male Inlet X Fem Outlet

Flow Direction: Vertical Downward
Thread Standard: DN25 ISO 7(Rp.)
