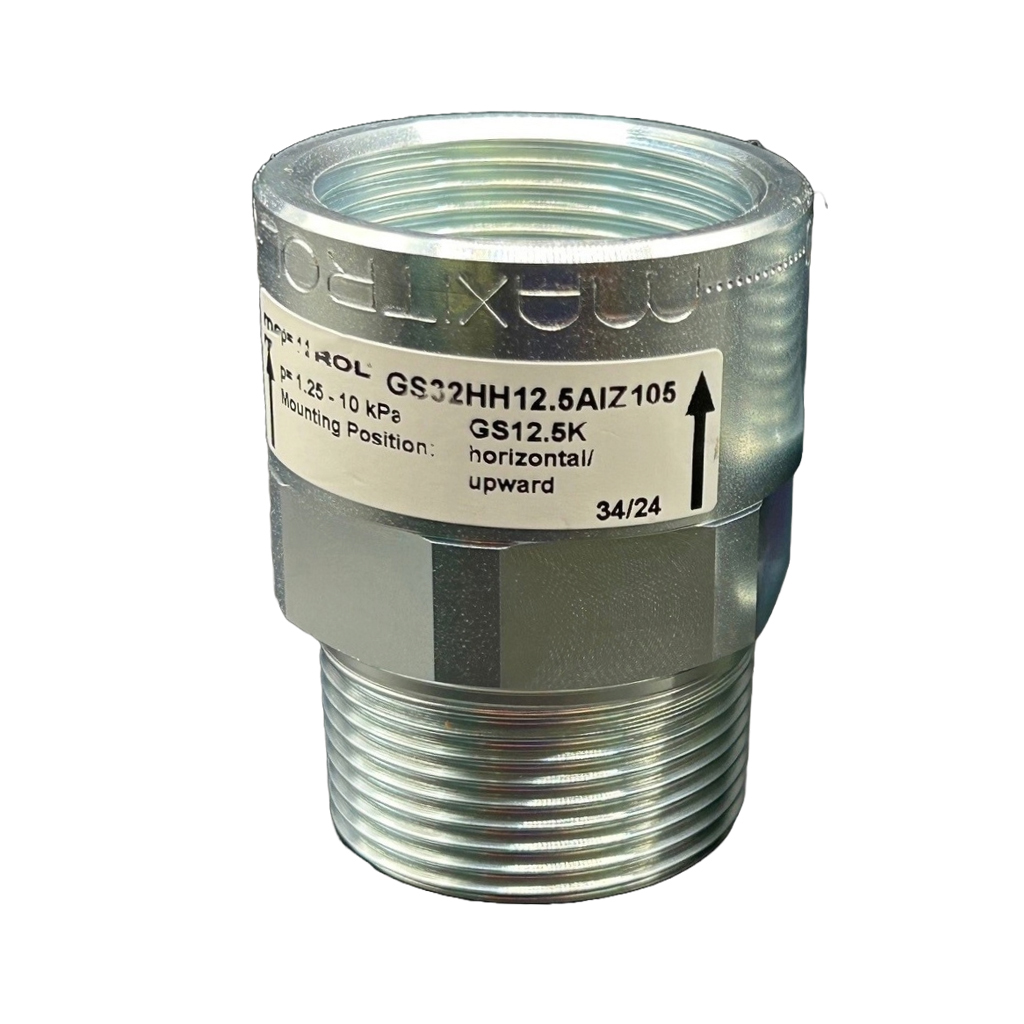

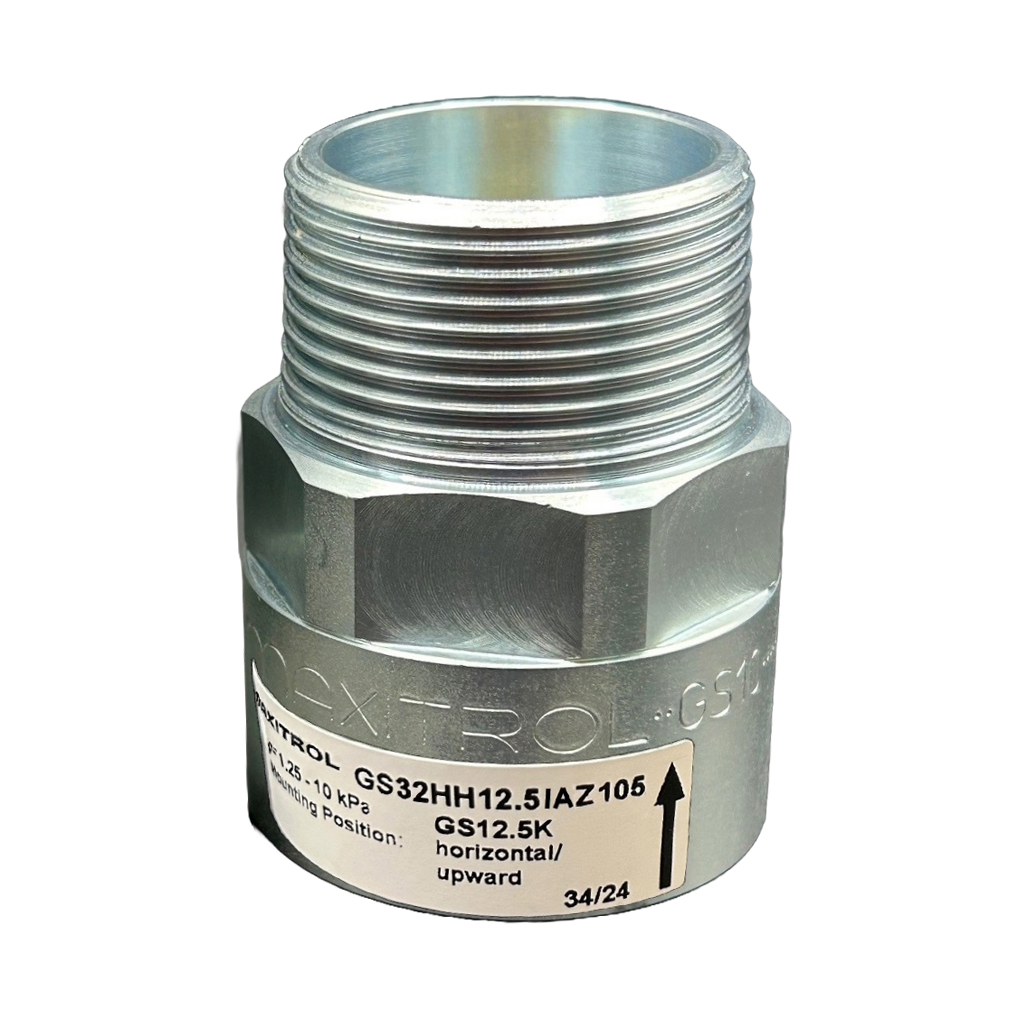

Model Series: KBGS32HH10IAZ105 / (DN32) / (1-1/4”)

Home » MAXITROL EXCESS FLOW VALVES » Model Series: KBGS32HH10IAZ105 / (DN32) / (1-1/4”)

SENTRY GS Excess Flow Valves (EFV) Residential Installation (Australia/New Zealand)

SENTRY GS excess flow valves (EFV) for residential installation shut off the gas flow when a predefined closing flow rate is reached.

Description

Product Code: KBGS32HH 10IAZ2

Model Series: GS32Z Sentry EFV

Working Pressure: 15mbar – 100mbar

Nominal flow: 10.0 m³/h – (390 mj/h)

Shut-off: Shut-Off = 580Mj.

Orientation: Fem Inlet X Male Outlet

Flow Direction: Vertical-up
Thread Standard: DN32 ISO 7(Rp.)
