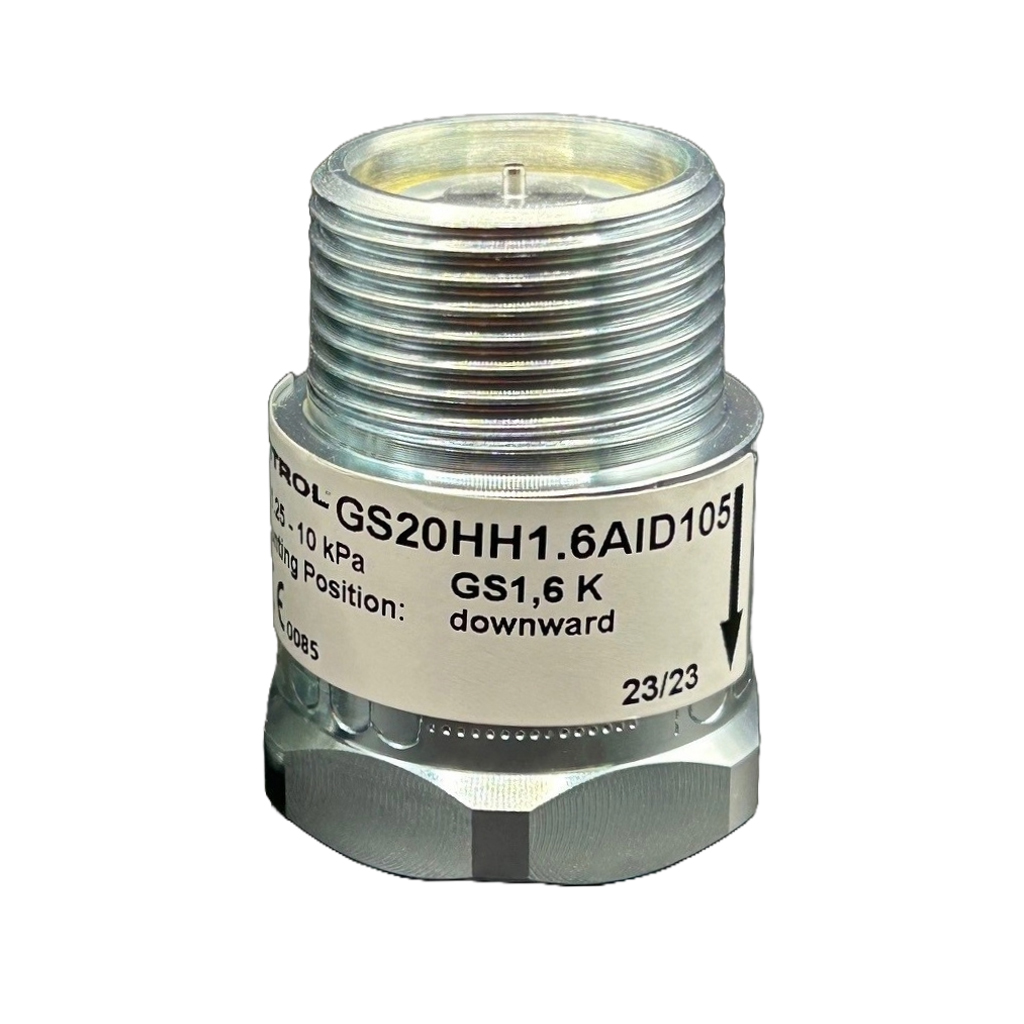

Gas Excess Flow Valve 1.6 downward flow (DN20) / (3/4″)

SENTRY GS Excess Flow Valves (EFV) Residential Installation (Australia/New Zealand)

SENTRY GS excess flow valves (EFV) for residential installation shut off the gas flow when a predefined closing flow rate is reached.

Category: GS20 Series

Product Code: KBGS20HH1.6AID105

Model Series: GS20D Sentry EFV

Working Pressure: 1.5kPa – 10kPa

Nominal flow Natural Gas: 1.7 m³/h (61Mj/hr)

Nominal flow LPG: 1.1 m³/h (101Mj/hr)

Orientation: Male Inlet X Female Outlet

Flow Direction: Vertical-down
Thread Standard: DN20 ISO 7(Rp.)
