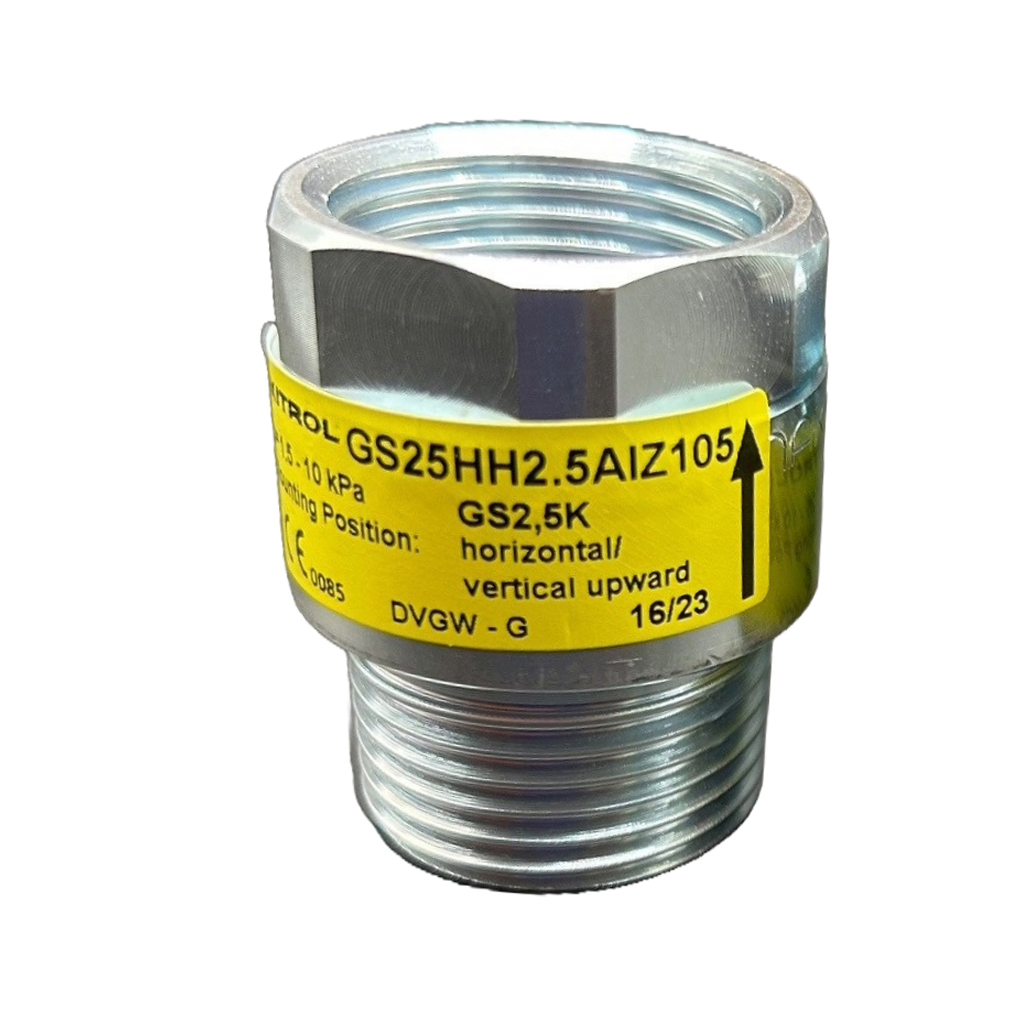

Excess Flow Valve 2.5 vertical/horizontal flow (DN25) / (1″)

SENTRY GS Excess Flow Valves (EFV) Residential Installation (Australia/New Zealand)

SENTRY GS excess flow valves (EFV) for residential installation shut off the gas flow when a predefined closing flow rate is reached.

Category: GS25 Series

Product Code: KBGS25HH2.5AIZ105

Model Series: GS25Z Sentry EFV

Working Pressure: 1.5kPa – 10kPa

Nominal flow Natural Gas: 2.6 m³/h (97Mj/hr)

Nominal flow LPG: 1.6 m³/h (155Mj/hr)

Orientation: Male Inlet X Female Outlet

Flow Direction: Vertical-up / Horizontal
Thread Standard: DN25 ISO 7(Rp.)
