Excess Flow Valve 7.5 vertical/horizontal flow (DN25) / (1")

Home / Excess Flow Valves / GS25 Series / Excess Flow Valve 7.5 vertical/horizontal flow (DN25) / (1″)

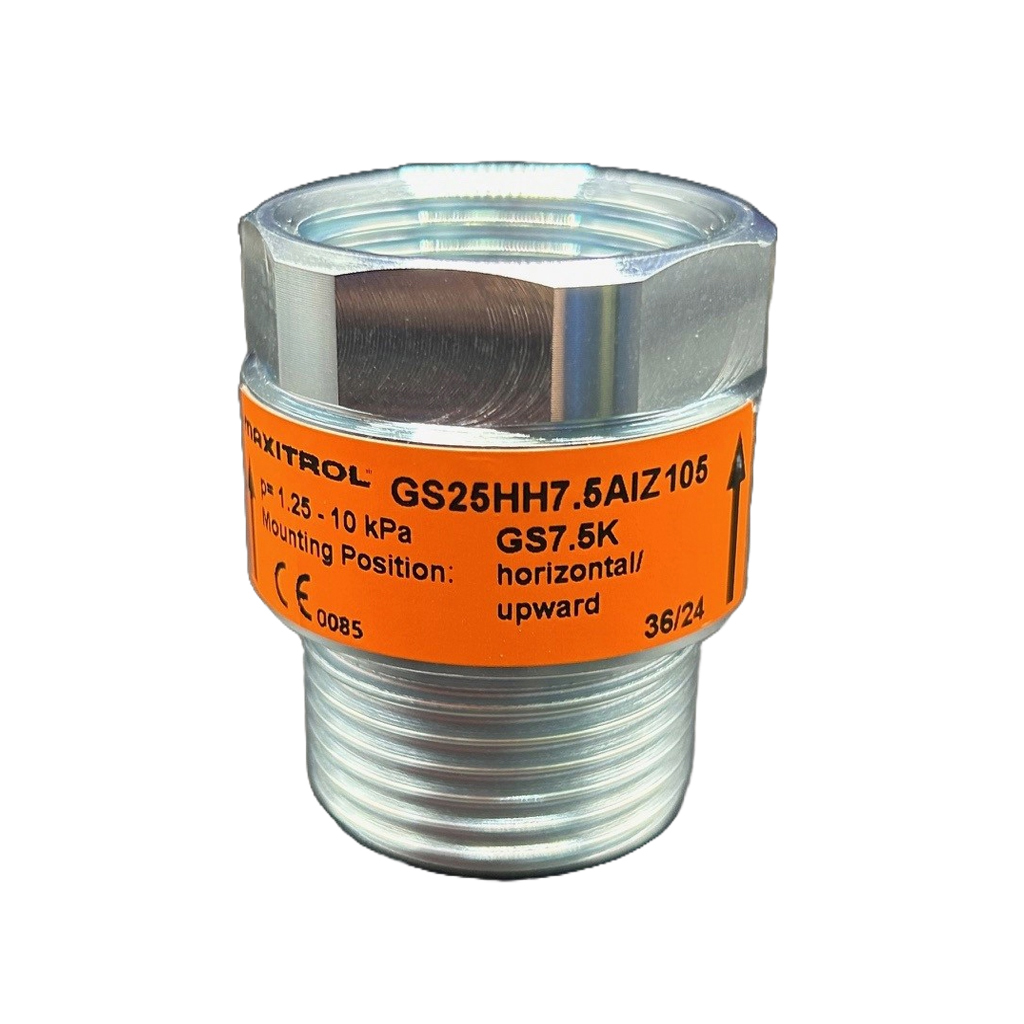

Excess Flow Valve 7.5 vertical/horizontal flow (DN25) / (1″)

SENTRY GS Excess Flow Valves (EFV) Residential Installation (Australia/New Zealand)

SENTRY GS excess flow valves (EFV) for residential installation shut off the gas flow when a predefined closing flow rate is reached.

Category: GS25 Series

Product Code: KBGS25HH7.5AIZ105

Model Series: GS25-7.5Z Sentry EFV

Working Pressure: 1.25kPa – 10kPa

Nominal flow Natural Gas: 7.7 m³/h (292Mj/hr)

Nominal flow LPG: 4.9 m³/h (468Mj/hr)

Orientation: Male Inlet X Female Outlet

Flow Direction: Vertical-up / Horizontal
Thread Standard: DN25 ISO 7(Rp.)
